C17000 Rod made by Cold Drawn Size 45mm for structural components by ASTM B196
Product Name: Rod
Grade: C17000
Diameter Range: 6mm~50mm
Length: 2m, 3m, 5m, 6m or as required
State: A(TB00), 1/2H(TB04), H(TD04), AT(TF00), HT(TH04)
Introduction of C17000 Copper Alloy:
UNS C17000 beryllium copper alloys are ductile, heat treatable and can be mill hardened. These alloys are used in applications, which require high strength and good conductivity. The following section will discuss in detail about UNS C17000 beryllium copper alloys.
UNS-Number: C17000
Beryllium(Be): 1.60-1.79
Cobalt + Nickel: 0.20 min
Cobalt + Nickel + Iron: 0.6 max
Lead: 0.02 max
Copper: Balance
Note: Copper plus additions equal 99.5% Min.
Common Standard Specification of Beryllium Copper C17000 Alloy:
Rod: ASTM B 196, SAE J 461, 463
Forgings and Extrusions : ASTM B570
Sheet: ASTM B 194
Typical Physical Properties of Beryllium Copper C17200 Alloy:
| Cuberyllium Brand |
Density lb/cu.in. |
Elastic Modulus |
Thermal Expansion Coefficient |
Thermal Conductivity Btu/(ft•hr•°F) |
Melting Temp. |
| 106 psi |
in/in/°F, 70°F to 400°F |
°F |
| 170 |
0.304 |
19 |
9.7 x 10 -6 |
60 |
1600-1800 |
Mechanical Properties of Beryllium Copper C17000 Rods:
Cuberyllium 170
Temper |
Tensile Strength |
Yield Offset |
Elongation |
Hardness |
| x 1000 P.S.I. |
0.2% offset x 1000 P.S.I. |
% in 2 Inches |
.020 Gauge and Above |
| TM00 |
AM |
100 - 110 |
70 - 95 |
18 -~30 |
B 98 |
| TM01 |
1/4HM |
110 - 120 |
80 - 110 |
15 ~ 25 |
C 20 - 26 |
| TM02 |
1/2HM |
120 - 135 |
95 - 125 |
12~22 |
C 24 - 30 |
| TM04 |
HM |
135 - 150 |
110 - 135 |
9~20 |
C 28 - 35 |
| TM05 |
SHM |
150 - 160 |
125 - 140 |
9~18 |
C 31 - 37 |
| TM06 |
XHM |
155 - 175 |
135 - 165 |
3~10 |
C 32 - 38 |
| Hardness Legend B : Rockwell (100 kgf Steel Sphere) C: Rockwell (150 kgf Diamond Cone) |
|
|
| NOTE: The information contained herein are intended for reference and comparison purposes only. They should NOT be used as a basis for design specifications or quality control. It is given without obligation or liability. Contact us for manufacturers' complete material property datasheets. |
Product Tags:
|
|

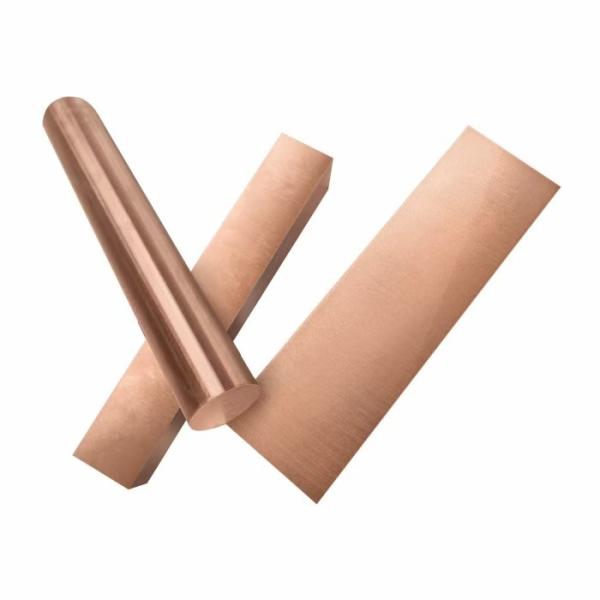

ASTM B196 C17000 Beryllium Copper Rod Pipe Cold Drawn 45mm Images
|
